Vector Welding machine DC TIG TW220 Inverter TIG ARC MMA STICK Electrode
WIG 200 A, MMA/STICK 200 A
PDF list
- Garantiebestimmungen: click there to view details.
- VectorDigital product catalogue: click there to view details.
- Data sheet: click there to view details.
- Bedienungsanleitung: click there to view details.
- Technical Details: click there to view details.
- Warranty conditions: click there to view details.
Descript of Vector Welding machine DC TIG TW220 Inverter TIG ARC MMA STICK Electrode
Welder TW220 DC (direct current) WIG and E-Hand Welding
TW220 DC, WIG 200 A, MMA/STICK 200 A, MOSFET,VECTOR Welder
Features:
| Welding Type: | TIG DC |
| Shipping weight: | 15,00 Kg |
| Product weight: | 14,00 Kg |
| Dimensions(length × width × height): | 40,00 × 19,00 × 38,00 cm |
Important functions & device information at a glance
| Technical specifications | |
| Output current TIG | 10-200 A |
| Output current MMA / ARC | 10-200 A |
| Duty cycle TIG | 60% at 200 A |
| Duty cycle MMA / ARC | 60% at 200 A |
| Open circuit voltage | 56 V |
| protection class | IP23S |
| insulation class | F |
| input voltage | 230 V AC (+-15%) / 1 ~ |
| input frequency | 50/60 Hz |
| To be secured with min. | 16 A |
| Maximum input current | 26 A |
| Maximum input power | 6,1 kVA |
| Recommended generator power | > 7 kVA / 1 ~ |
| Weight | 15 kg |
| Size L x W x H mm | 400 x 190 x 380 |
| Power plug type | SchuKo-Bauart CEE 7/7 |
| Standards | IEC 60 974-1 ; CE ; S Mark |
| Scope of delivery | |
| TIG accessories | TIG welding torch "WP-26" 4.5 meters |
| 4 gas nozzles. Sizes: 4, 5, 6, 7 | |
| 4 clamping sleeves. Size 1.6 and 2.4 | |
| 4 clamping sleeve housing. Size 1.6 and 2.4 | |
| Torch cap - one short and one long each | |
| miscellaneous | Gas fabric connection hose: 3 m |

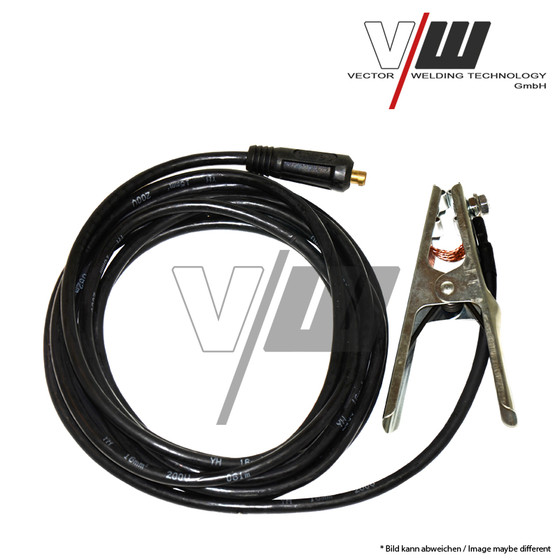

| Ground cable 3 meters | |
| Electrode holder 3 meters | |
