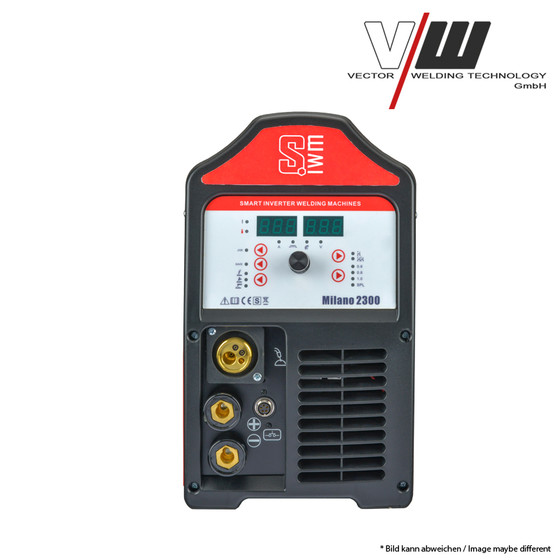

Descript of SWIM Milano2300 Kombi Welder DC MIG 200A MAG TIG MMA FCAW E-Hand Inverter 4 in1
Easier welding and economical choice.
Milan2300 is a very simple MIG/MAG welding machine, very easy to use even if without any experience, Super mobility of weight 14kg can let you do welding everywhere. Get in an economical cost it can also bring you MMA process so it could be also used for electrodes. Based on inverter system, Milan2300 offering fast arc response and precise arc ignition, also saves up to 50% on input power and increases tack and welding speed to twice that of traditional welding rectifiers.
Easy operation and full functions: From the control panel allowing fast adjustment of all necessary controls for DC TIG welding with HF ignition. It?s also very convenient to store or take out the welding parameters from the memory.
Important functions & device information at a glance
Specialist Features:
♦ Full digitized control system, new energy efficient IGBT inverter power source, very simple and friendly operations.
♦ Very clear wire melting drop transfer, very few spatters
♦ Powerful peak current confirms deep penetration and wide welding capacity.
♦ Dynamic control with a push of a button.
♦ Fast, precise, clean arc ignition to ensure the sccess ratio and arc ending.
♦ Weights at a mere 14 kg making it easy to carry around the shop or job site.
Technical specifications | |
Weight | 14 kg |
Power Source Dimensions | H490mmxW225mmxD380mm |
Cooling | Fan Cooled |
Welder Type | Multi Process Inverter Power Source |
European Standards | EN 60974-1 / IEC 60974-1 |
Number of Phases | 1 |
Nominal Supply Voltage | 230V +/- 15% |
Nominal Supply Frequency | 50/60Hz |
Welding Current Range (DC STICK Mode) | 10-170A |
Welding Current Range (DC TIG Mode) | 10-200A |
Effective Input Current /STICK /TIG | 16.8A |
Maximum Input Current/STICK/ TIG | 30.9A |
Single Phase Generator Requirement | 15KVA |
STICK (MMA) Welding Output, 40℃, 10 min. | 170A @ 30%, 26.8V 93A @ 100%, 23.7V |
TIG (GTAW) Welding Output, 40℃, 10 min. | 200A @ 40%, 18V 126A @ 100%, 15V |
Open circuit voltage | 60V DC |
Protection Class | IP23 |
