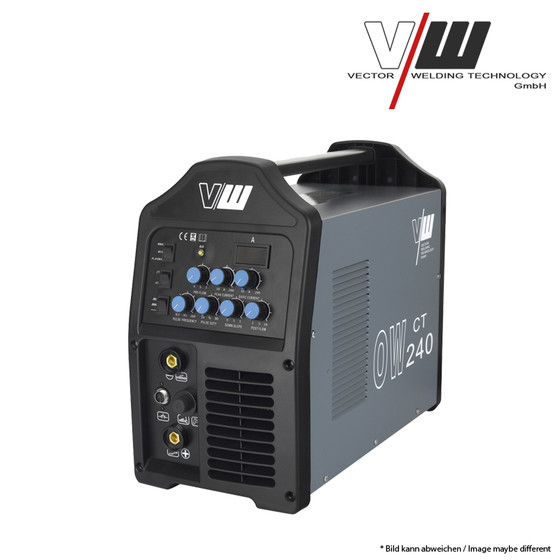

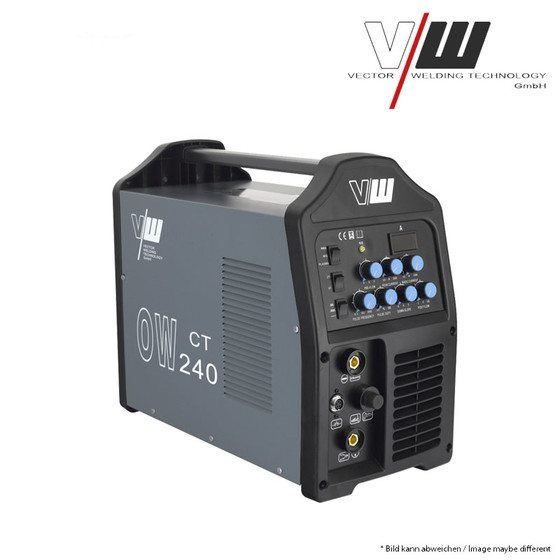

Descript of VECTOR Welding Machine DC TIG OW240 Puls With plasma cutter Inverter TIG CUT MMA Electrode
Combi Weldingmachine and Plamacutter
DC, WIG 200 A, MMA/STICK 200 A, CUT Contakt, MOSFET, VECTOR Weldingmachine Plasmacutter
Features:
| Welding Type: | TIG DC |
| Shipping weight: | 21,00 Kg |
| Dimensions(length × width × height): | 45,00 × 22,50 × 38,00 cm |
Important functions & device information at a glance
| Technical specifications | |
| Output current TIG | 10-200 A |
| Output current MMA / ARC | 10-200 A |
| Output current plasma / CUT | 10-45 A |
| Duty cycle TIG | 60% bei 200 A |
| Duty cycle MMA / ARC | 60% bei 200 A |
| Duty cycle plasma / CUT | 60% bei 45 A |
| Open circuit voltage | 56 V |
| protection class | IP23S |
| insulation class | F |
| input voltage | 230 V AC (+-15%) / 1 ~ |
| input frequency | 50/60 Hz |
| To be secured with min. | 16 A |
| Maximum input current | 26,8 A |
| Maximum input power | 6,1 kVA |
| Recommended generator power | > 7 kVA / 1 ~ |
| Weight | 21 kg |
| Size L x B x H mm | 450 x 225 x 380 |
| Power plug type | SchuKo-Bauart CEE 7/7 |
| standardize | IEC 60 974-1 ; CE ;S mark |
| Scope of delivery | |
| TIG accessories | TIG welding torch "WP-26" 4.5 meters |
| 4 gas nozzles. Sizes: 4, 5, 6, 7 | |
| 4 clamping sleeves. Size 1.6 and 2.4 | |
| 4 clamping sleeve housing. Size 1.6 and 2.4 | |
| Torch cap - one short and one long each | |
| CUT accessories | Plasma torch "AG-60" 4.50 meters |
| 5 plasma nozzles AG60 | |
| 5 plasma electrodes AG60 | |
| 3 ceramic caps AG60 | |
| * 1 set Pre-assembled on plasma torch | |
| miscellaneous | Water separator with pressure gauge |
| Gas fabric connection hose: 3 m | |
| Ground cable 3 meters | |

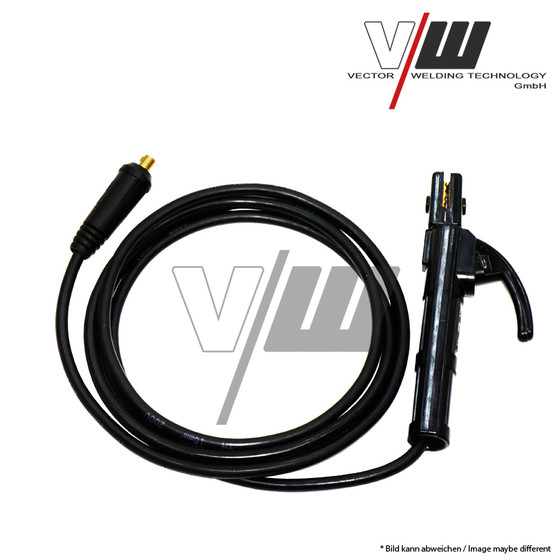

| Electrode holder 3 meters | |
