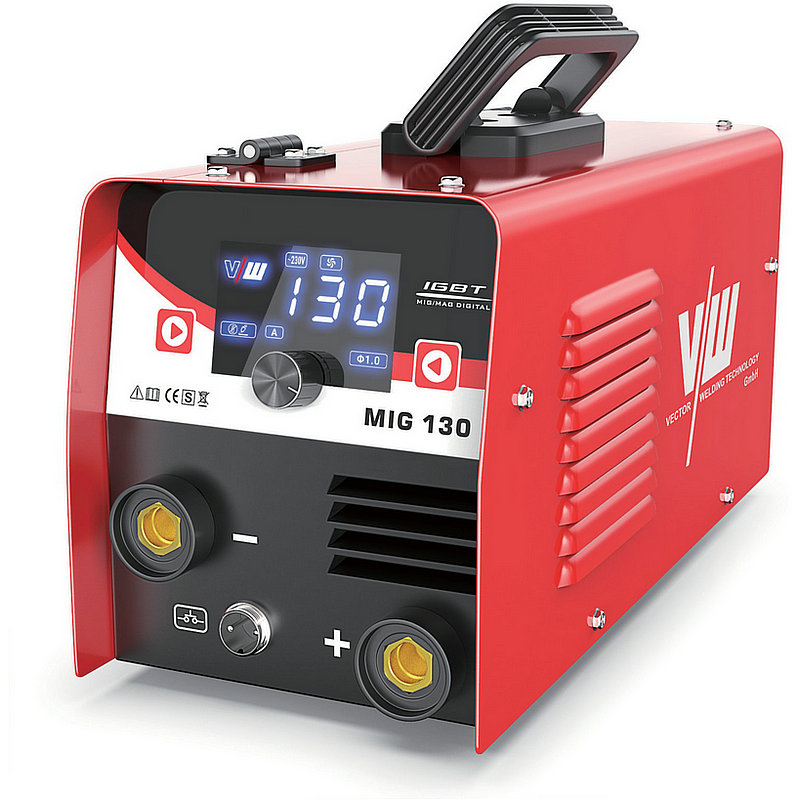

Descript of MIG 130 (40-130A)
Important functions & device information at a glance
Welding methods
MIG Welding (Flux cored wire 1kg) / MMA Welding
Weldable metals
Can be used to weld low carbon steel, low alloy high strength steel, low temperature steel, heat-resistant steel and stainless steel.
Performance characteristics
✱ MCU control system, reacts immediately to all changes.
✱ Adopt IGBT high-frequency inverter technology.
✱ The arc molten pool is stable and the generation of spatter is reduced by more than 50%.
✱ The melting speed of welding wire is fast, the penetration depth is deep, the welding efficiency is high, and the weld seam is beautiful
✱ The wire feeding speed is stable, gentle and smooth
✱ High-definition digital display screen, simple and convenient operation
✱ After reasonable design and optimization, it can maintain stable performance during long-term use and is not prone to malfunctions.
✱ It adopts various protection circuits such as phase loss, overvoltage,
undervoltage, overcurrent and overheating. It has strong resistance to grid fluctuations and high reliability of the welding machine.
✱ It can work without gas.
✱ Lightweight and portable, facilitating easy movement.
| Technical specifications | |
| Description | MIG 130 |
| Weight | 4 kg |
| Power Source Dimensions | 340*140*170mm |
| Cooling | Fan Cooled |
| Welder Type | Inverter Power Source |
| European Standards | EN 60974-1 / IEC 60974-1 |
| Number of Phases | 1 |
| Nominal Supply Voltage | 230V +/- 15% |
| Nominal Supply Frequency | 50/60Hz |
| Welding Current Range (DC MIG/MAG Mode) | 40 - 130A |
| Welding Current Range (DC MMA/ARC Mode) | 20 - 120A |
| Effective Input Current | 14.4A |
| Maximum Input Current | 18.7A |
| Single Phase Generator Requirement | 10KVA |
| MIG /MAG Welding Output, 40oC, 10 min. | 130A@ 60%20.5V 101A@ 100%19V |
| MMA/ARC Welding Output, 40oC, 10 min. | 120A@ 60%24.8V 108A@ 95%23.8V |
| Wire roll weight | 0.5kg/1kg |
| Wire roll diameter | Ø 0.8/Ø 1.0 |
| Open circuit voltage | 62V DC |
| Protection Class | IP23 |
