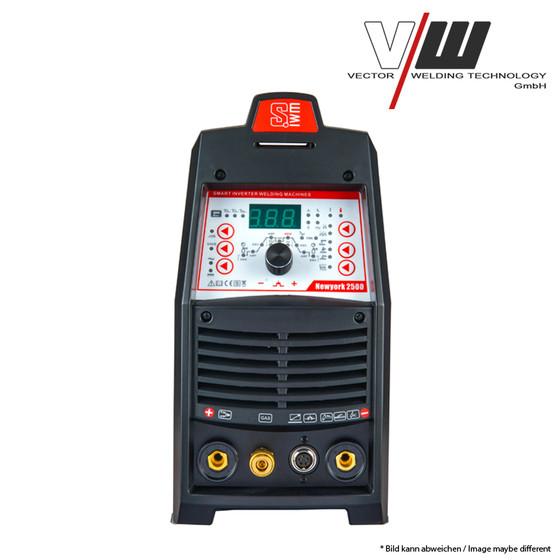

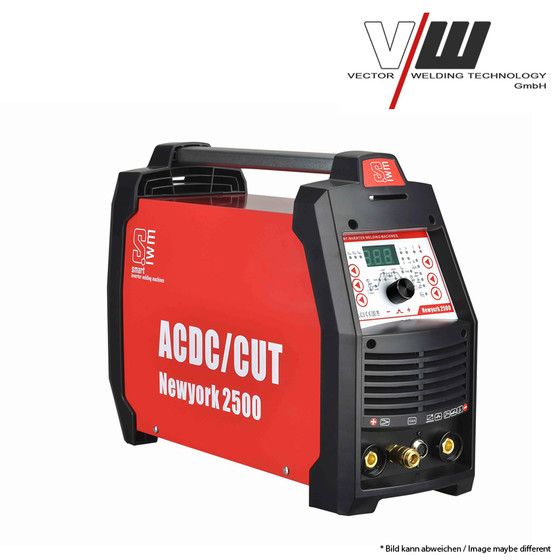

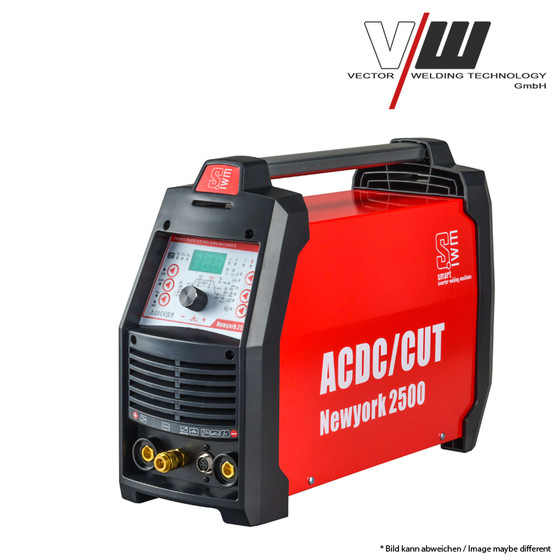

Descript of SET: NewYork 2500 Kombi Profi Schweißgerät AC/DC WIG 200 Puls Mit Plasmaschneider ALU TIG MMA E-Hand Inverter 5 in1 + Fußpedal
Important functions & device information at a glance
Welder and Plasmacutter, all in one
AC/DC, TIG 200 A, TIG Pulse, MMA/STICK 200 A, CUT Plasma contact, MOSFET, STAHLWERK Welding
Features:
| ♦ AC/DC TIG Welder - Welding all materials (e.g. ALUMINIUM) |
| ♦ TIG Welder with 200 A |
| ♦ ARC FORCE - For Welding in every position. |
| ♦ ANTI-STICK |
| ♦ HOTSTART |
| ♦ MMA/ARC/STICK Welder with 200 A |
| ♦ CUT Plasmacutter with 50 A |
| ♦ CUT Contact - needs contact to the material for cutting. |
| ♦ 2T/4T-Mode |
| ♦ Current adjustment over Footpedal possible (not im scope of delivery) |
| ♦ TIG High Frequency (HF) ignition (TIG Welding needs no contact) |
| ♦ TIG PULSE - For better Welding. |
| ♦ Welding in all positions. |
| ♦ Overheating Control (O.C.) |
| ♦ High Duty Cycle |
| ♦ 230 V on 16 A possible. |
Datasheed:
| Output Current TIG | 10-200 A |
| Output Current MMA/ARC/STICK | 10-200 A |
| Output Current Plasma/CUT | 10-45 A |
| Duty cycle TIG | 60% bei 200 A |
| Duty cycle MMA/ARC/STICK | 60% bei 200 A |
| Duty cycle Plasma/CUT | 60% bei 45 A |
| Open circuit voltage | 56 V |
| Protection class | IP21S |
| Isolation class | F |
| Input Voltage | 230 V AC (+-15%) / 1 ~ |
| Eingangsfrequenz | 50/60 Hz |
| Fuse min. | 16 A |
| Max. input current | 27 A |
| Max. input Power | 6,2 kVA |
| Recommended Generator-Power | > 7 kVA / 1 ~ |
| Weight | 20,9 kg |
| Size L x W x H mm without Handle | 500 x 330 x 320 |
| Size L x W x H mm with Handle | 500 x 330 x 360 |
| Plug | SchuKo-Bauart CEE 7/7 |
| Norms | IEC 60 974-1 ; CE ; S-Sign |
| Welding Type: | TIG AC/DC ARC/MMA/STICK |
| Plasma cutting: | CUT contact |
| Brand: | S-Series |
| Technologie: | MOSFET |
| Funktion: | DC Puls |
| Shipping weight: | 14,25 Kg |
| Product weight: | 13,00 Kg |
| Ausgangsstrom WIG | 10-200 A |
| Ausgangsstrom MMA/ARC | 10-200 A |
| Ausgangsstrom Plasma/CUT | 10-45 A |
| Einschaltdauer WIG | 60% bei 200 A |
| Einschaltdauer MMA/ARC | 60% bei 200 A |
| Einschaltdauer Plasma/CUT | 60% bei 45 A |
| Leerlaufspannung | 56 V |
| Schutzklasse | IP21S |
| Isolationsklasse | F |
| Eingangsspannung | 230 V AC (+-15%) / 1 ~ |
| Eingangsfrequenz | 50/60 Hz |
| Abzusichern mit min. | 16 A |
| Maximaler Eingangsstrom | 27 A |
| Maximale Eingangsleistung | 6,2 kVA |
| Empfohlene Generatorleistung | > 7 kVA / 1 ~ |
| Gewicht | 20,9 kg |
| Größe L x B x H mm ohne Griff | 500 x 330 x 320 |
| Größe L x B x H mm mit Griff | 500 x 330 x 360 |
| Netzstecker-Typ | SchuKo-Bauart CEE 7/7 |
| Normen | IEC 60 974-1 ; CE ; S-Kennzeichen |

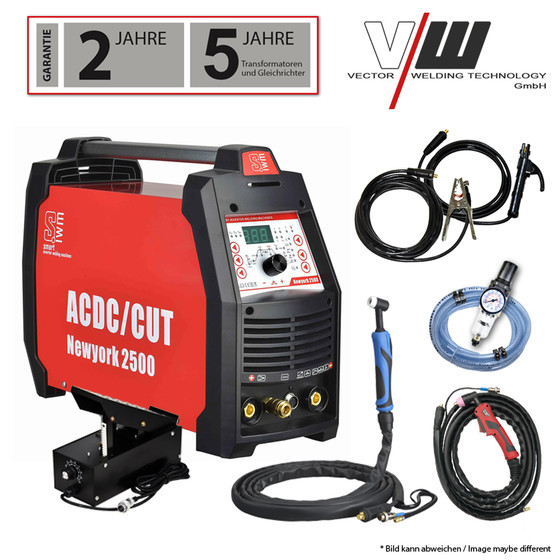

| TIG accessories |
| TIG-Torch "SR-17" 4,5 Meter [Art.# SB2000-01] |
| CUT accessories |

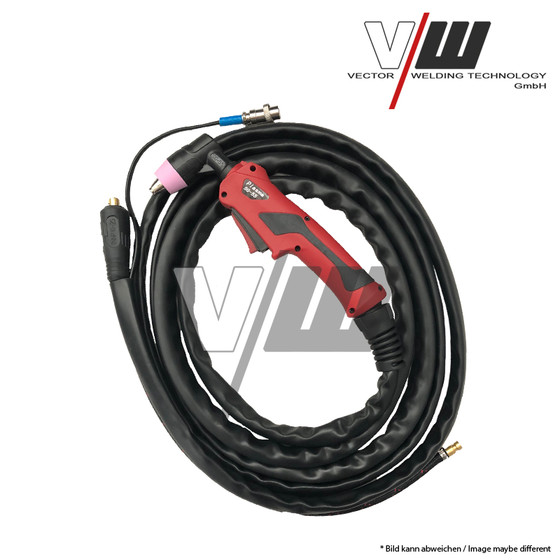

| Plasma-Torch "PT-31" 4,50 Meter [Art.# SB2110-01] |
Watertrap with gauge [Art.# ZC3150] |
| Gas-Hose: 3 m [Art.# ZO3450] |
| Ground cable 3 Meter [Art.# CA2350-01] |
| Electrode cable for STICK 3 Meter [Art.# CA2300-01] |
